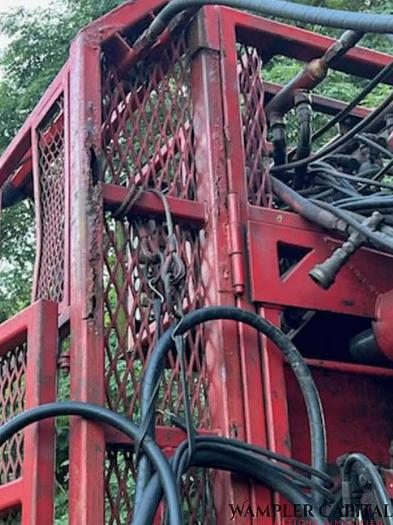

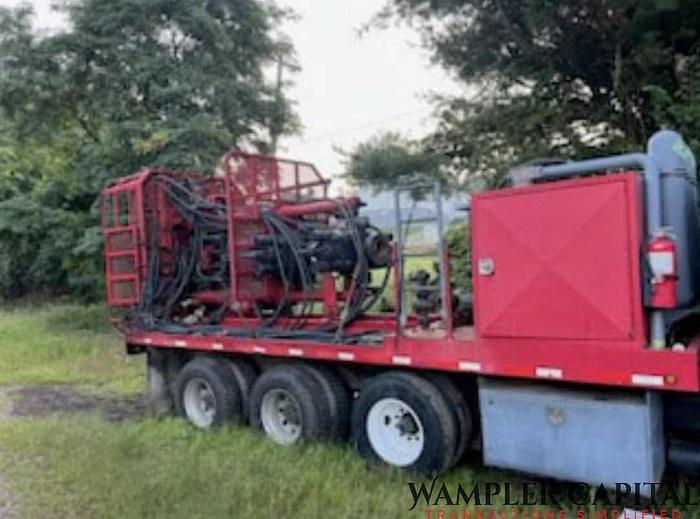

2007 120K Freightliner Bobtail Rig Assist Snubbing Unit

120k Bobtail Rig Assist Snubbing Unit

Engines :450 - 600 Rated Hp

Transmission: Manual

Jack Cylinders:

Jack Stroke: 9.5 feet

Rods: 3 1/2 inch

Barrel: 5 inches

Jack Capacity @ 3000 psi

Snub: 60,000 Lbs.

Lift: 120,000 Lbs.

Jack Bore: 7 1/16 inches

Passive Rotary

Slip Bowls:

Oil Country HD full opening 7 1/16 inverted slips

Capacity of 250,000 lbs

Gate Opening 6 inch

Pipe Range of 1 inch to 5 ½ inch

BOP STACK:

Annular: Shaffer type 7 1/16-inch, 5,000 psi Working Pressure

RAM BOPS: 7 1/16-5,000 psi Type U stripping stack with hydraulic controlled stripping loop and bleed

off.

Stripping Stack top to bottom as follows:

1, 7-1/16" 5000psi Shaffer Type Spherical Annular

1,7-1/16" 5000psi Type U Bop

1, 7-1/16' 5000psi Flanged or Studded flow cross with 1502 5,000psi Equalize & Bleed Off loop

1, 7-1/16' 5000psi Type U Bop

1, 7-1/16" 5000psi Spacer Spool (If Needed)

Single Joint Pipe Winch:

D Manufacturing 3GNBXX1L6C

Max line pull:

3000 Lbs. with 1 row of cable

1840 Lbs. With 3 rows of cable

Safety elevator for lifting tubing from rack to basket
